How do I import Decision Zones from Field360 into Granular Insights?

Overview
Import decision zones from Field360 Studio to make it easier than ever to use custom zones for variable rate seeding prescriptions in Granular Insights.

Requirements

  • Crop assigned to the field in Field360 Studio
  • Field360 decision zones created as “standard” decision zones, created automatically after the crop zone was assigned or built from the Management Zone Wizard
    • Note: you can edit the layer with blocks or treatment areas, but the core ProductivityIndex, YieldTarget, and/or NCCPI attributes and their data need to remain “as is” for all polygons

Prior to importing files to Granular Insights, the decision zone layers must be exported in a GeoJSON file format from Field360 Studio.

Exporting Decision Zones from Field360 Studio

Process - Web

  1. Log in to F360 Studio.
  2. Navigate to the operation, crop year and field you'd like to export layers for.
  3. Click the + symbols next to the farm and field names to expand your selections until you locate the decision zones layer.

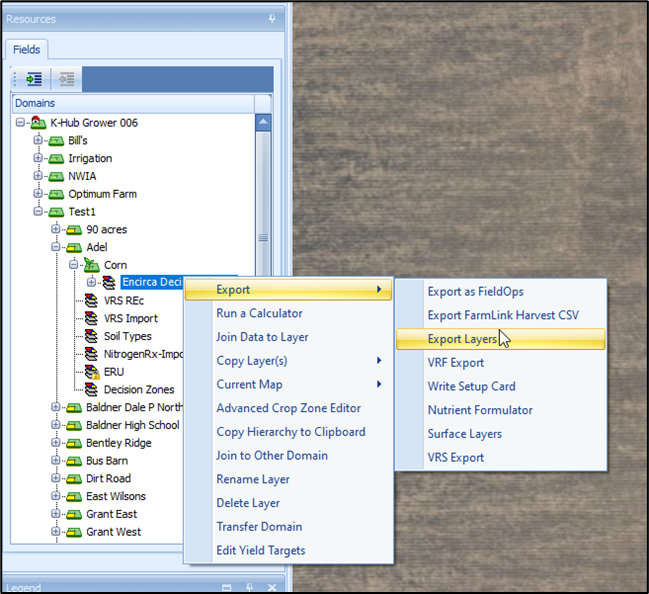

  4. Right-click on the decision zones layer you want to export and select Export > Export Layers.

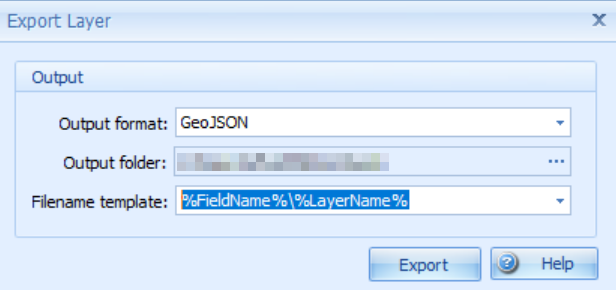

  5. Select GeoJSON as the output format, choose an ouput folder where the file will be saved and a file name template that includes the field name.
    • Exporting layers cannot be completed in bulk at this time

Importing Decision Zones into Granular Insights

Process - Web

  1. Log in to Granular Insights for Canada at https://ca.insights.granular.ag.
  2. Navigate to VRS on the left side navigation bar.

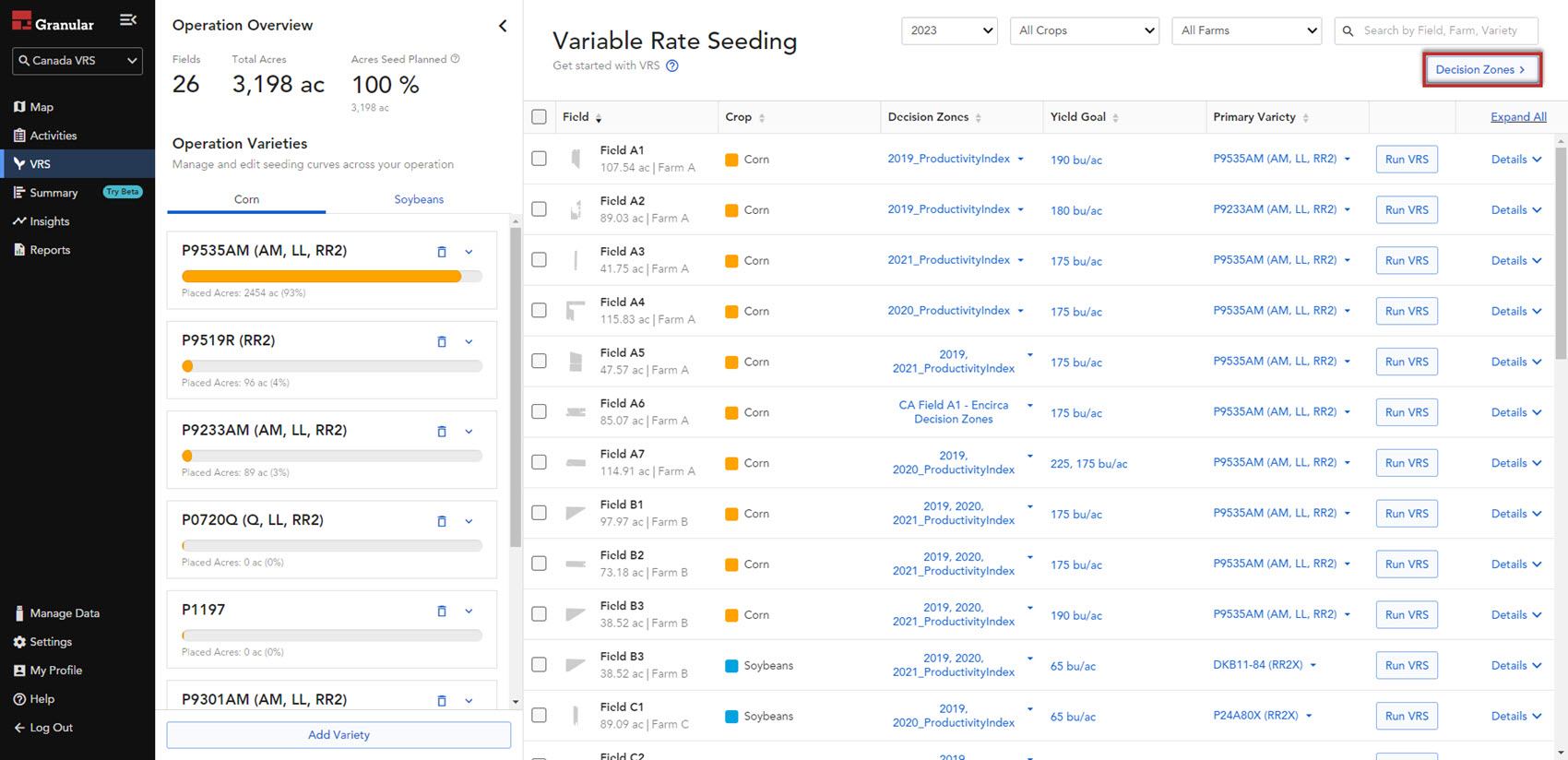

  3. Select the Decision Zones button in the VRS workspace.
    DZ button.jpg

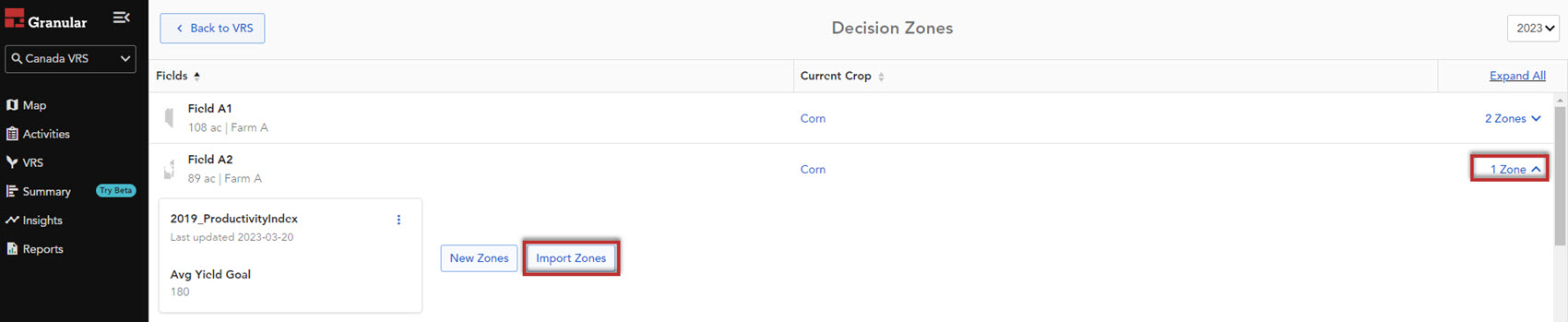

  4. Expand the zones list for the field you plan to import the decision zone to and select the Import Zones button.
    Import Zones - button.jpg

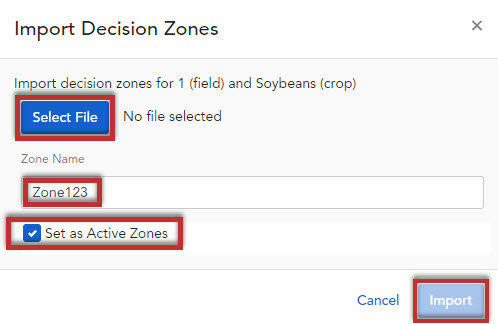

  5. Select the GeoJSON layers file and create a zone name. Set as active zones and click Import.

Import Zones.jpg

A banner at the top of the page will show the progress of importing each zone.
