View Field Notes



There are multiple ways to view notes and photos in Granular Insights. Easily hide and show notes and photos pinned on your field. Hide all pinned notes to show a clear picture of your field or show all notes to easily reference your observations throughout the growing season.



Process – Web

1. Log in to Granular Insights for Canada at https://ca.app.granular.ag.
2. Click Map on the left navigation menu.
3. Access the operation’s notes and photos on the map, through field layers or in in-season monitoring.

Map

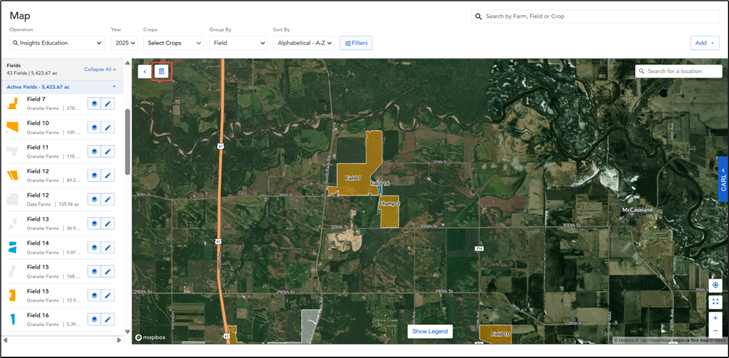

1. 1. 1. Click on the Notes icon on the top left of the map.

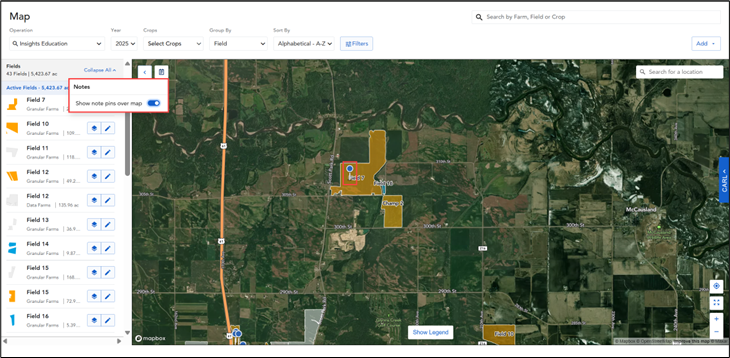

      2. Toggle on Show note pins over map. Pins will show on the map where notes have been entered.

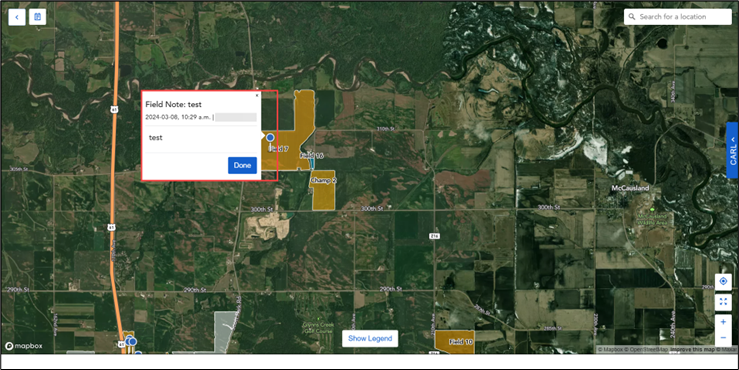

      3. To view a note, click on the pin on the map.





Field Layers

1. 1. 1. Click the layer icon  beside the field that you want to view notes for.

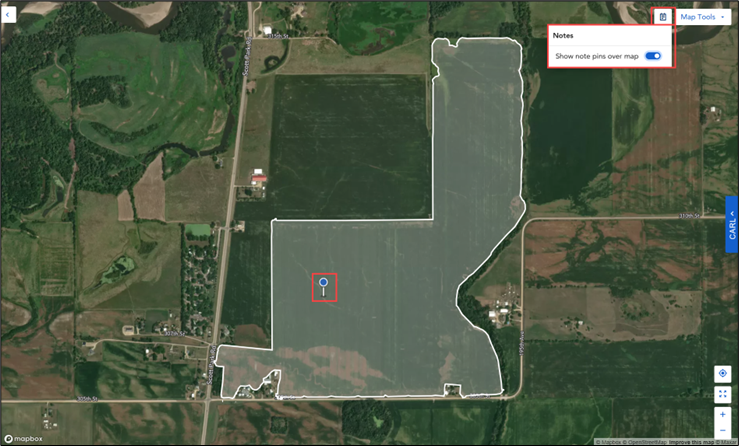

      2. Click the Notes icon on the top right of the map, beside Map Tools. Toggle on Show note pins over map. Pins will show on the map where notes have been entered.

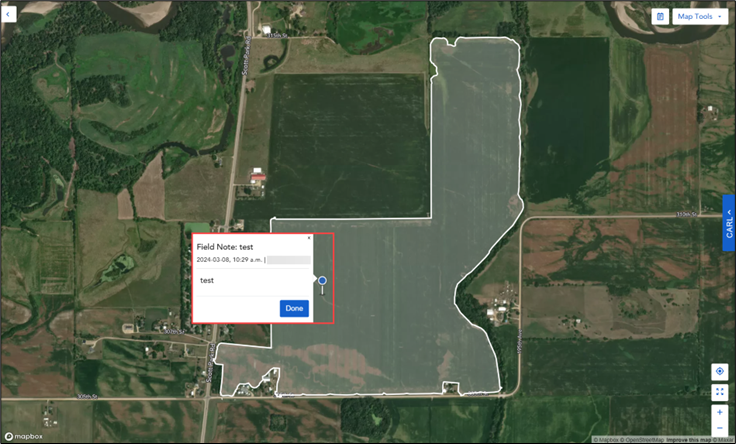

      3. To view a note, click on the pin on the map.





Note:

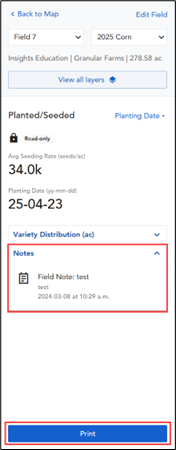

• • • • You can also click on a layer to select it and expand the Notes section to see a list of the notes and, click on the note to see the details. If you want to print a PDF of the notes for the field, click Print at the bottom of the layer details window.



1. 1.

In-Season Monitoring

1. 1. 1. Navigate to In-Season Monitoring on the left navigation menu.

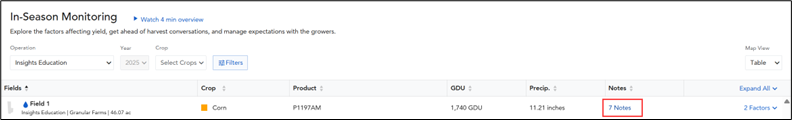

      2. Under the Notes column, click the link to notes for the field that you want to view notes for.
