Make a connection to CNH


Granular Insights helps you organize your farm's data in one place. Get the most out of your equipment by connecting your CNH account to import field operations data into Granular Insights for deeper analysis.


Process - Web

  1. Log in to Granular Insights at
  2. Click on Manage Data at the bottom left side of the screen.
  3. Click Add Connection.

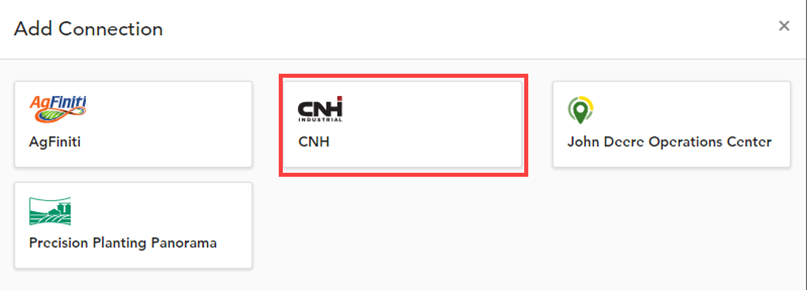

  4. Select CNH.

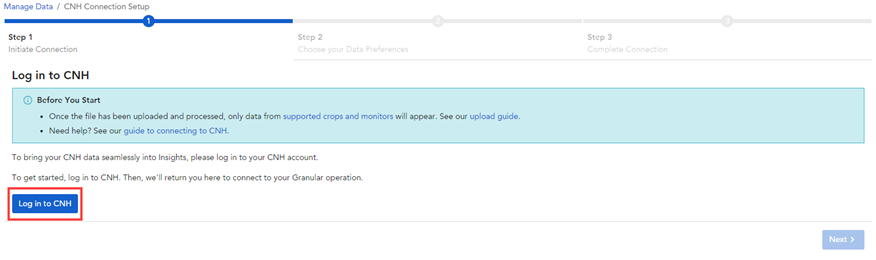

  5. Click Log in to CNH.
  6. Enter your CNH login credentials. If your credentials are already stored on your device, you may not be asked to enter them again.

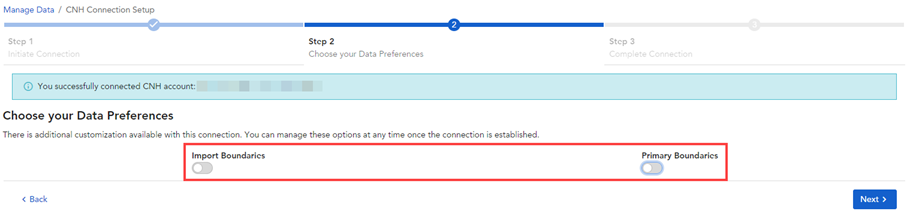

  7. Choose your data preferences by toggling Import Boundaries or Primary Boundaries on or off. Click Next to continue.


  • If your CNH operation has field boundaries that you would like to bring over to Granular Insights, toggle on Import Boundaries on the Data Preferences screen.
    • Machine data will only appear in Granular Insights if there are field boundaries to link to.
  • If you want your CNH boundaries to be the primary boundary source and override the existing boundaries in Granular Insights, toggle on Primary Boundaries on the Data Preferences screen.
    • An export of the existing boundaries in Granular Insights is generated and made available in the Manage Data tab, in Downloads, prior to the CNH boundaries being synched.
    • Changes cannot be made in Granular Insights to synchronized boundaries. This will ensure that the boundaries in Granular Insights and in CNH match.

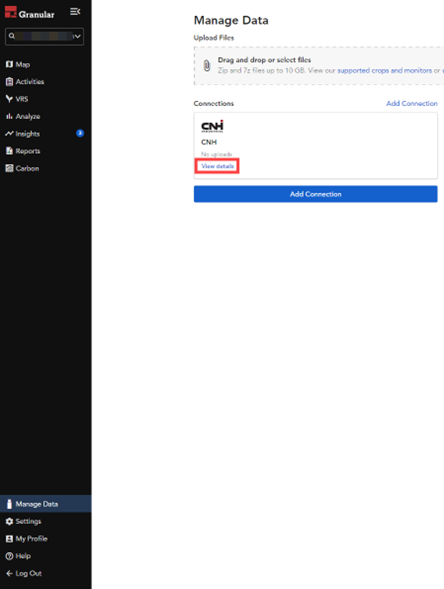

  • You can turn the Import Boundaries and Primary Boundaries toggles on/off anytime you wish by navigating to the Manage Data tab and selecting View details under the CNH connection.

8. If the Primary Boundaries toggle is on, select whether you want to keep or archive the existing Granular Insights boundaries. Click Enable, Next to continue and then Finish.

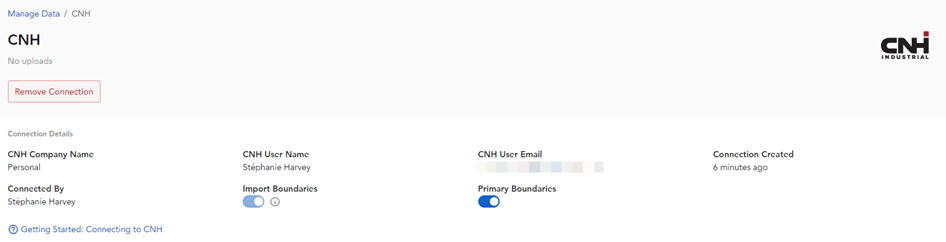

9. Review the connection details to ensure they are correct.



  • Please allow up to 24 hours for the data to process and come through to Granular Insights.
