Merge Field Layers



Merge two layers together to combine the geometry and attributes into a single layer view.



Process – Web

1. Log in to Granular Insights at https://us.app.granular.ag.
2. Click Map on the left navigation menu.
3. Select the operation that has the field that contains the layer you want to merge.
4. Click the layer icon beside the field that you want to access the layers for.
5. Select the layer that you want as the base layer (layer to be merged in to).

   Note:
   • MYYA Class and Soil Test layers cannot be used as the base layer to merge in to.

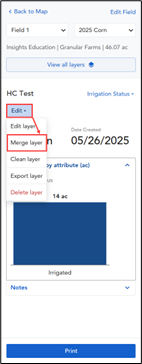

6. Click the edit menu and select Merge Layer.

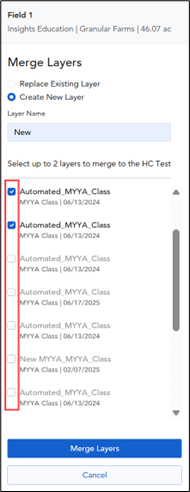

7. Select whether you want to Replace Existing Layer or Create New Layer. If you choose to create a new layer, enter a name for the layer.



8. Select the layer to be merged into the base layer. The geometry and attributes of this layer will be merged into the base layer.

   Note:
   • You can select up to 2 layers to merge into the base layer



9. Click Merge Layers. You will now see the new layer under the Layers list.
