Machine Data: Machine Data Upload, and Preview

Requirements:

  • Machine Data from a Supported Monitor [More info here]
  • Machine Data Zipped
  • An user role on the operation with the ability to upload data [Admin, Advisor, Editor]



Process - Web

 Granular Insights

1. Select Manage Data

1 Machine Data upload.png

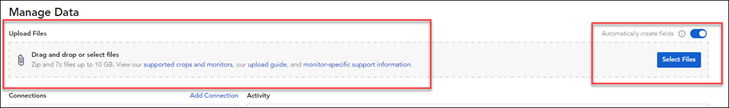

2. Uploading data into Granular Insights can be done via “Select Files” or “Drag and Drop” options.

Note: Automatically create fields toggle allows data to build boundaries off data (also under Settings > Other Settings)

2 Machine Data upload.png



3. Once a file has been selected, data will be displayed in an upload window.

4 Machine Data upload.png

More info about data preview and other helpful tips: Data Preview



Data Preview

  • Select 'Preview Files' after uploading.

1 Preview.png

  • Once your upload is complete, click 'Preview Files' located in the picture to begin the preview process.



5 Machine Data upload.png



  • Wait for Preview to be ready.
    • While our systems quickly prepare your files for preview, you'll get update alerts that look like this. Once ready, you can click 'Preview Files' to proceed.
    • Those alerts will be under your Activity section within Manage Data, shown below:

6 Machine Data upload.png



  • Preview & Select Activities
    • You can select which activities within the file will be analyzed within Insights.

7 Machine Data upload.png

  • You can filter this view by Year, Farm, Field, Activity, Crop, Grower, or Date.

8 Machine Data upload.png

  • When you are done with editing and filtering data you would like to upload, select complete. The file will then go from Preview Ready to Processing.

9 Machine Data upload.png



Step by step video (no sound)
