Field Editor Map Overlay



Use past Yield and Seeding Rate layers to make modifications to improve field boundaries. Easily identify and remove roads and waterways to improve the precision of data analysis of the fields.



Process - Web

1. Log in to Granular Insights at https://us.app.granular.ag.
2. Click Map on the left navigation menu.
3. Select the operation with the field that needs to be updated.
4. Click the Edit icon beside the field in the field list.

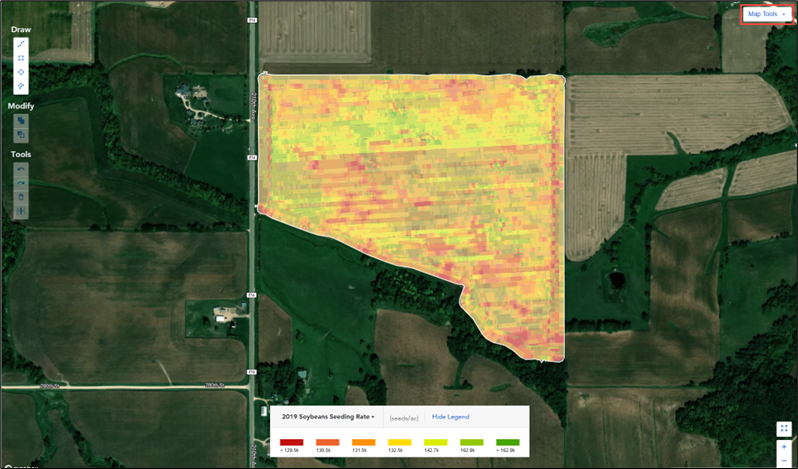

5. Click Map Tools on the top right of the map.

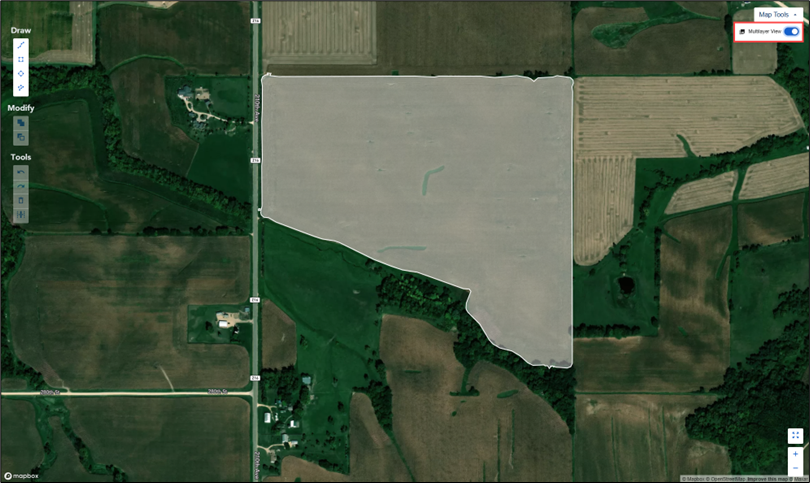

6. Toggle Multilayer View on.

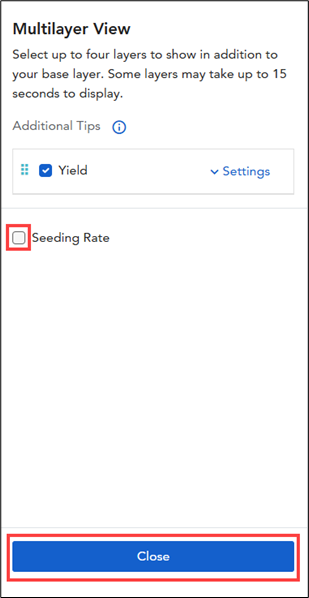

7. Select the Yield and/or the Seeding Rate layers and click Close.

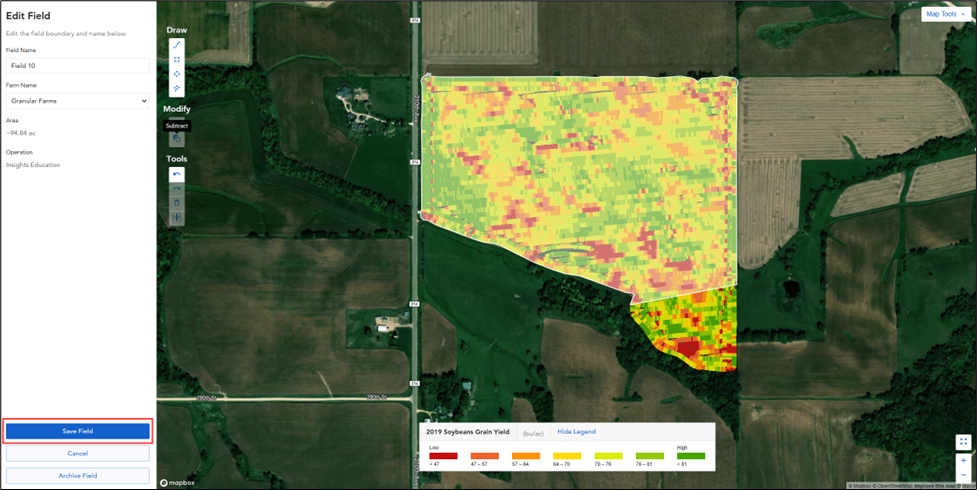

8. Make the desired edits to the boundary using the map editing tools.
9. Click Save Field to save the edits made to the field boundary.
